Pneumatic Actuated Valve supplier in Egypt

African valve is the top Pneumatic Actuated Valve Supplier in Egypt. Pneumatic Actuated Valves are mechanical devices that utilize compressed air or gas to drive the valve mechanism. They play a crucial role in industries such as oil and gas, chemical processing, water treatment, power generation, and manufacturing, providing efficient and reliable control over fluid flow.

How do pneumatic actuators work?

A Pneumatic Actuator is a device that uses mechanical energy which convert compressed air or gas into mechanical motion

Pneumatic Actuated Valve receives a signal compressed air or gas is directed into the actuator chamber, creating pressure inside.

• The compressed air enters the actuator and applies pressure to the internal components, this pressure creates a force that acts upon the actuator's internal mechanism, starts operating.
• By controlling the direction of airflow, these valves determine the movement of the piston, allowing for precise control over the actuator's motion.
• Pneumatic Actuated Valves typically respond to a control signal, which can be pneumatic, electric, or electronic in nature. This signal decides when and how the actuator should operate.

Types of Pneumatic Actuated Valve :

• Pneumatic Actuated Ball Valve: Ball valves use a spherical ball to control flow. Pneumatic Actuated is utilizes compressed air or gas to operate an actuator, which in turn controls the opening, closing, or modulation of flow through a ball valve

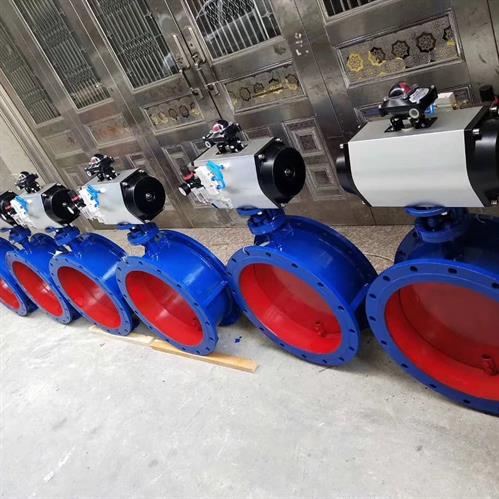

• Pneumatic Actuated Butterfly Valve: Butterfly valves have a disc-shaped closure element mounted on a rotating shaft  that controls the flow by adjusting its angle relative to the flow direction.
• Pneumatic Actuated Gate Valve: These valves operate by raising or lowering the gate to either allow or block the flow of fluid, allowing for precise control over fluid flow in pipelines.
• Pneumatic Actuated Knife Gate Valve: knife gate valve features a sharp-edged gate that slices through the fluid, ensuring a tight seal when closed and minimal resistance when open.actuators offer fast response times and precise control over valve operation.

Industries:

• Oil and Gas Industry
• Chemical Industry
• Petrochemical Industry
• Mining Industry
• Marine Industry

Description:

• Available materials options we supply: WCB, WC6, WCC, LCB, LCC, Cast iron, Ductile Iron, SS316, SS304
• Size: 2" to 80"
• Class: 150 to 300
• Nominal Pressure: PN6 to PN40
• Operation: Pneumatic Actuated
• Ends: Wafer, Lug, Flanged

Configuration of a Pneumatic Actuator:

• 4-20 Mamp
• Pneumatic single acting actuators
• Pneumatic double acting actuators
• Pneumatic rotary actuators
• Pneumatic Scotch and Yoke actuators
• Pressure: 228 bar

Temperature:

• Standard -4°F to 200°F (-20°C to 93°C)
• Low -40°F to 176°F (-40°C to 80°C)
• High 0°F to 300°F (-18°C to 149°C)
