Learn MongoDB in a nutshell

In this article we will be learn and discuss about MongoDB in a nutshell...This article will give you great understanding on MongoDB concepts in brief.

The following topics will be covered in this article:

  1. Insert Document
  2. Update Data in collection
  3. Delete Data in collection
  4. Get All collections from Database
  5. Use Equal, Less than, Greater Than, Less than or Equal and Greater than or Equal operators
  6. And Clause, Or clause, Not clause, Between clause and Like clause
  7. Sort, Limit, Projection, Sum, Count, Min, Max, Avg, Date time, Join, Group By and Having Clause

Databases originated in the 1960s in order to replace the existing file organization of data.

The first databases that appeared used hierarchical (tree-like) or network structures to store data.

Types of Databases:

SQL: Structured Query language is the standard language for dealing with Relational Databases. In this Data uses schemas and relations and will be scaled in vertical.

Important characteristics of the Databases:

  • Structured data
  • Related data
  • Metadata
  • Data integrity & Data security
  • Data storage, retrieval, and update

NoSQL: Not only SQL, It schemas less and no relations (very few) data maintains. It’s possible to do horizontal and vertically data scaling. It stores and processes huge volumes of data

Important characteristics of the NoSQL Databases:

  • Need to store unstructured data
  • Need for scalability and flexibility
  • Need for real-time access.
  • Types of NoSQL Databases:

The following main types of NoSQL databases can be identified, depending on the data model used:

  • Key-value store
  • Document store
  • Column-oriented
  • Graph-oriented

The characteristics of the most popular products from each category are taken into account when performing the analysis. These are:

  1. Redis for key-value stores;
  2. MongoDB for document stores;
  3. Apache Cassandra for column-oriented stores;
  4. Neo4j for graph-oriented stores.

MongoDB is a No SQL database. It is an open-source, cross-platform, document-oriented database written in C++.

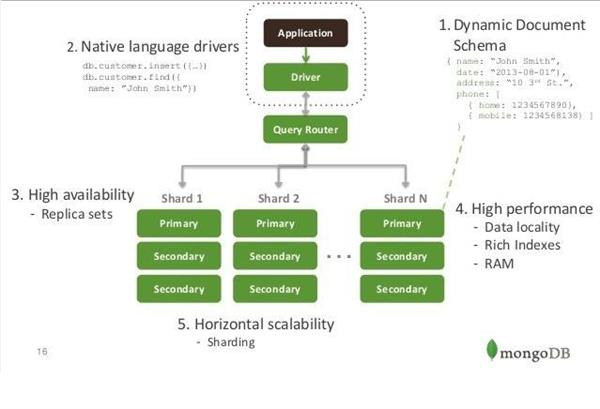

Why Use Mongo DB:

Please look into the below snapshot for better understanding :

We can interact with MongoDB in different ways. Listed below

  1. Uses mongo shell to insert data and perform query operations.
  2. Uses MongoDB Compass to connect to insert data and perform query operations.

            Here is the below link for more details.

            https://docs.mongodb.com/manual/tutorial/getting-started/#getting-started

    3. Here is the list of most popular third party MongoDB tools

  • MongoBooster
  • RoboMongo
  • MongoVUE
  • RockMongo
  • MongoHub
  • UMongo
  • 3T Mongo Chef

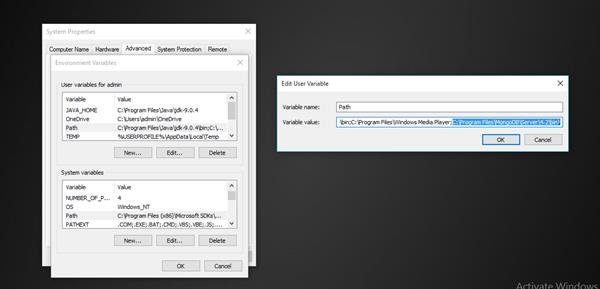

Configuration through Mongo Shell

If you use “mongo” in the command prompt without configuring it, then it would give an error. Hence, configure it first.

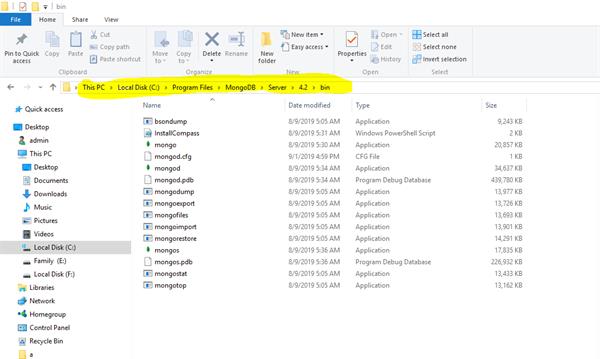

Step 1: Go to the local disk C and get into Program Files. There you'll find a folder named MongoDB.

This is the following Path:
C:\Program Files\MongoDB\Server\3.2\bin\

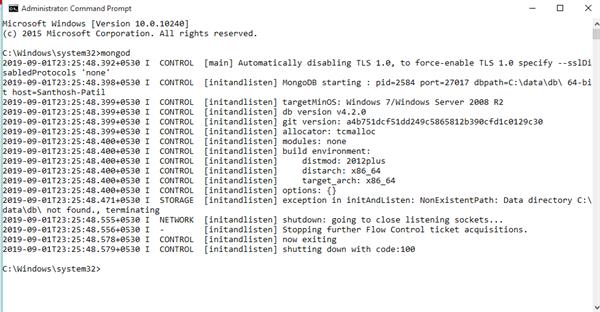

Open Command prompts and types “mongod” to start the service.

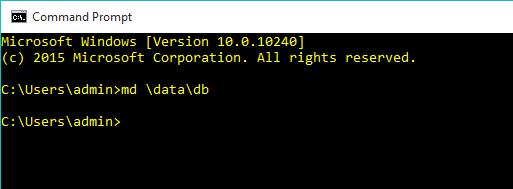

MongoDB requires a data directory to store all data. Mongo DB’s default data directory path is:
\data\db.

Create this folder

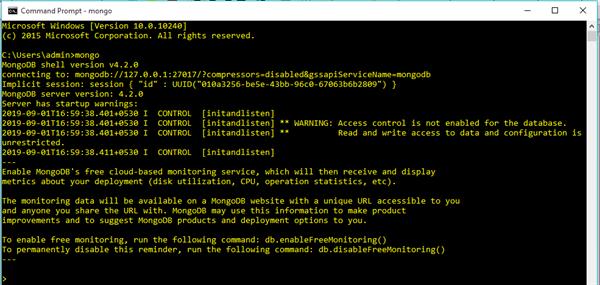

Write command on the command prompt “mongo” to create the connection.

MongoDB – Create Database

Creation of a database is so easy. All you have to do is to put “use” before the name of the database and press Enter.

First Create Connection:

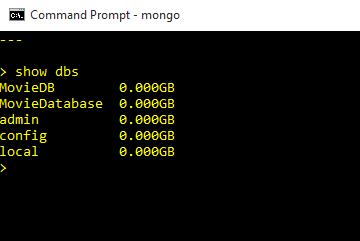

Mongo list collections with the command “show dbs

As we have created a database. Now, let's create a mongo collection in it. For this purpose, a user must insert certain records which make up a mongo document in collection i.e. via Field Names & Field Values.

Connect to a MongoDB instance running on your localhost with default port 27017.

Create New Database:

Create a database with the name is MovieDatabase. This database has 2 collections: Movie collection and Product collection. Movie collection and Region collection have a One to Many. One movie can have many products and One region belongs to one and only one category.

/* Create MovieDatabase database */

use MovieDatabase

/* Create Movie collection */

db.createCollection('Movie');


/* Dumping data for ` movie ` collection */

db.getCollection('movie').insert({

    name: 'Hollywood'

})


db.getCollection('movie').insert({

    name: 'Bollywood'

})


db.getCollection('movie').insert({

    name: 'Tollywood'

})


WriteResult({ "nInserted" : 1 })

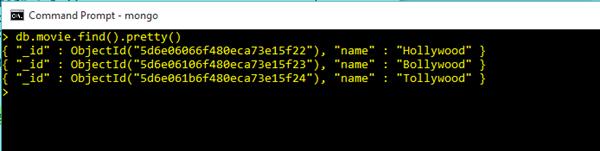

> db.movie.find()

{ "_id" : ObjectId("5d6e06066f480eca73e15f22"), "name" : "Hollywood" }

{ "_id" : ObjectId("5d6e06106f480eca73e15f23"), "name" : "Bollywood" }

{ "_id" : ObjectId("5d6e061b6f480eca73e15f24"), "name" : "Tollywood" }

>

db.movie.find().pretty()

/* Create Region collection */

db.createCollection('region');

/* Dumping data for `` collection */

db.getCollection('region').insert({

FileName: 'Sahoo',

Budget: '350',

Language: 'Telugu',

date: ISODate('2019-08-30'),

movieId: ObjectId('5d6e061b6f480eca73e15f24'),

Industry: {

_id: new ObjectId(),

name: 'Tollywood'

}

});

db.getCollection('region').insert({

FileName: 'Bahuballi',

Budget: '200cr',

Language: 'Hindi',

date: ISODate('2015-08-30'),

movieId: ObjectId("5d6e06106f480eca73e15f23"),

Industry: {

_id: new ObjectId(),

name: 'Bollywood'

}

});

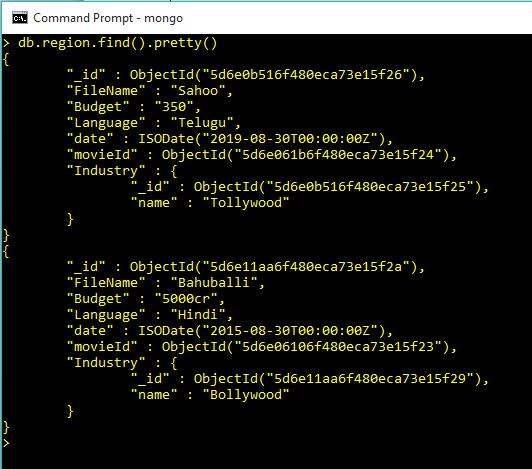

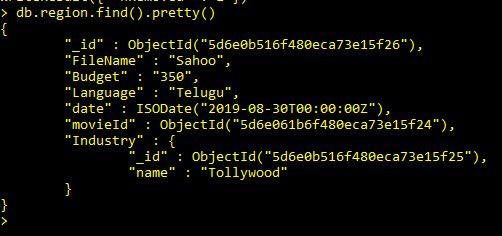

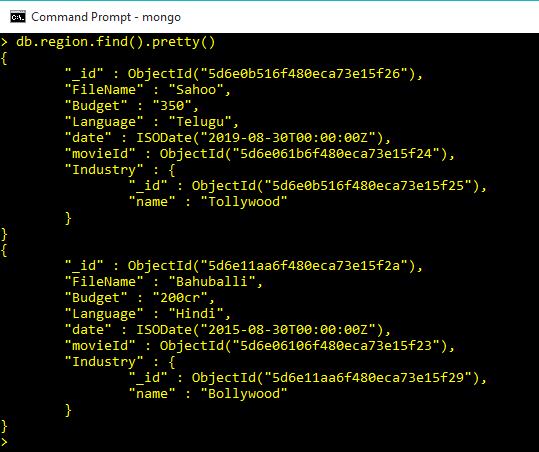

db.region.find().pretty()

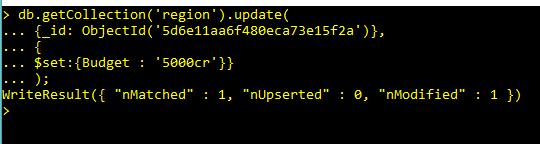

Update Data in collection

db.getCollection('region').update(
{_id: ObjectId('5d6e11aa6f480eca73e15f2a')},
{
$set:{Budget : '5000cr'}}
);

Check now the collection is updated or not

db.region.find().pretty()

Delete Data in Collection

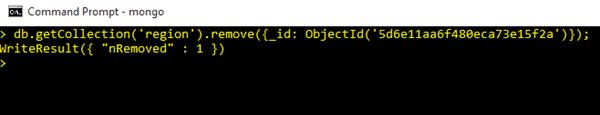

db.getCollection('region').remove({_id: ObjectId('5d6e11aa6f480eca73e15f2a')});

Check now particular id collection is deleted or not

Get All collections from Database

Add some movies to the collections for better understanding.

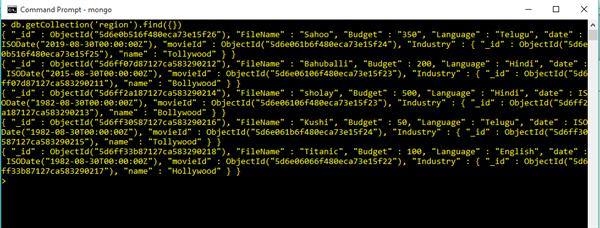

 db.getCollection('region').find({})

Use find() method display documents in Region Collection

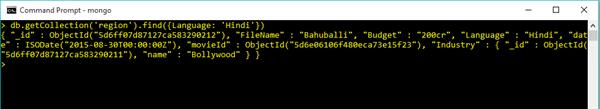

Use Equal Operator in Query Commands

db.getCollection('region').find({Language: 'Hindi'})

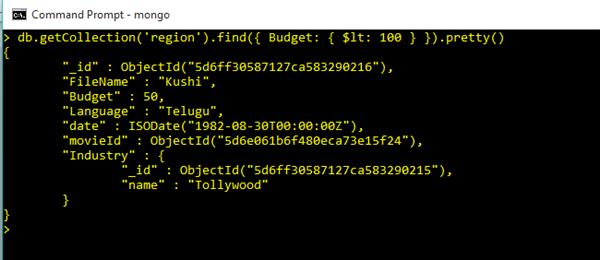

Use Less Than Operator in Query Commands

db.getCollection('region').find({ Budget: { $lt: 100 } })

Output

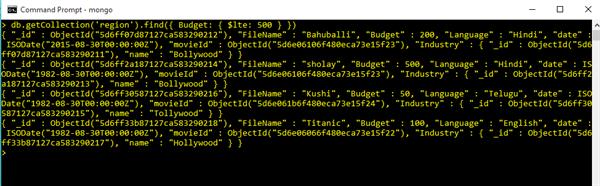

Use Less Than or Equal Operator in Query Commands

db.getCollection('region').find({ Budget: { $lte: 500 } })

Output

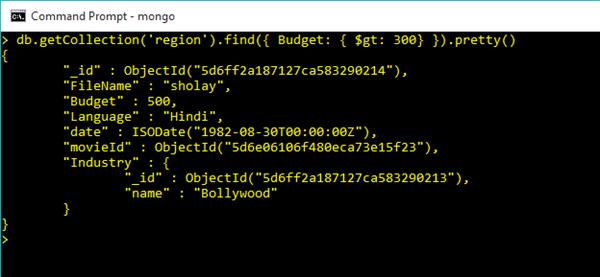

Use Greater Than Operator in Query Commands

db.getCollection('region').find({ Budget: { $gt: 300} })

Output

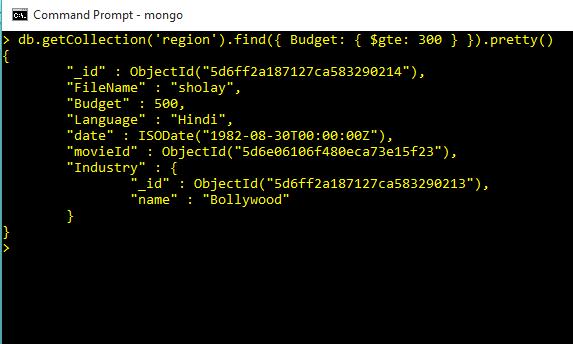

Use Greater Than or Equal Operator in Query Commands

db.getCollection('region').find({ Budget: { $gte: 300 } })

Output

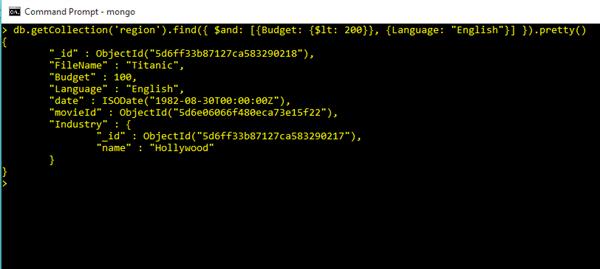

And Clause in Query Commands

db.getCollection('region').find({ $and: [{Budget: {$lt: 200}}, {Language: "English"}] }).pretty()

Output

Or Clause in Query Commands

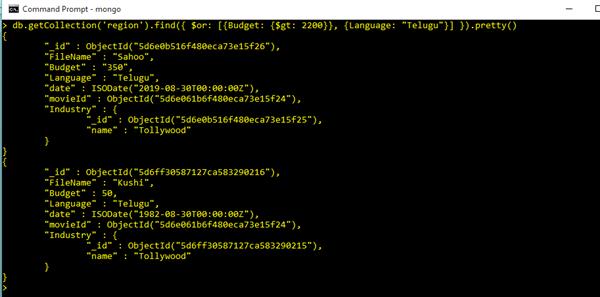

db.getCollection('region').find({ $or: [{Budget: {$gt: 2200}}, {Language: "Telugu"}] }).pretty()

Output

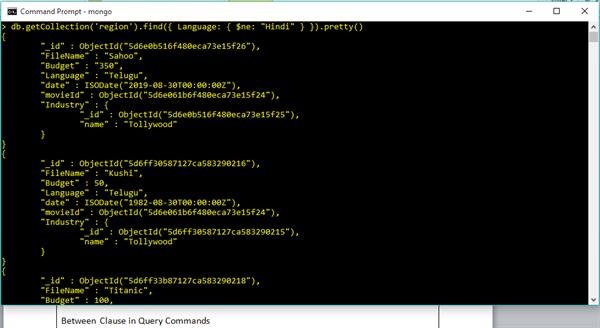

Not Clause in Query Commands

db.getCollection('region').find({ Language: { $ne: "Hindi" } }).pretty()

Output.

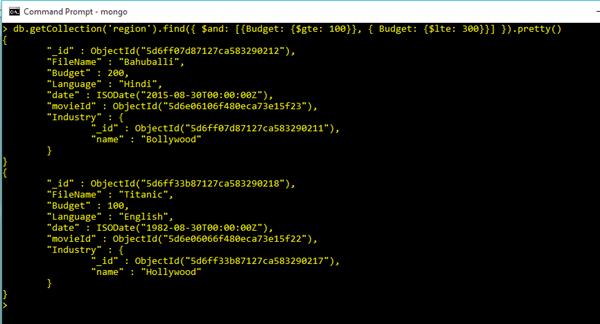

Between Clause in Query Commands

db.getCollection('region').find({ $and: [{Budget: {$gte: 100}}, { Budget: {$lte: 300}}] }).pretty()

Output

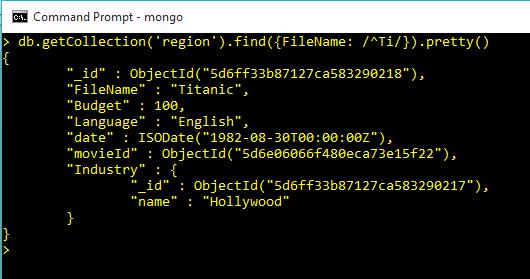

Like Clause in Query Commands

Start with Mob string

db.getCollection('region').find({FileName: /^Ti/}).pretty()

Output

Ends with le 2 string

db.getCollection('region').find({FileName: { $regex: /hi$/ } } ).pretty()

Output

Limit in Query Commands

If we want to fetch the first two documents from the collection "region", the following MongoDB command can be used

db.region.find().limit(2).pretty();

If we want to fetch two documents after the first two documents from the collection 'region', the following MongoDB command can be used :

db.region.find().skip(2).pretty();

If we want to fetch the two documents after the first document from the collection 'region', the following MongoDB command can be used :

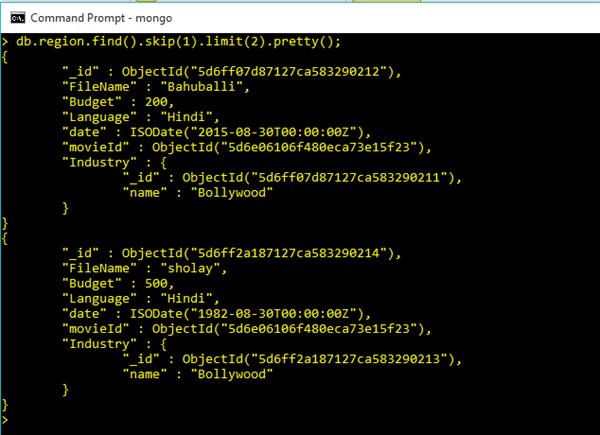

db.region.find().skip(1).limit(2).pretty();

Output

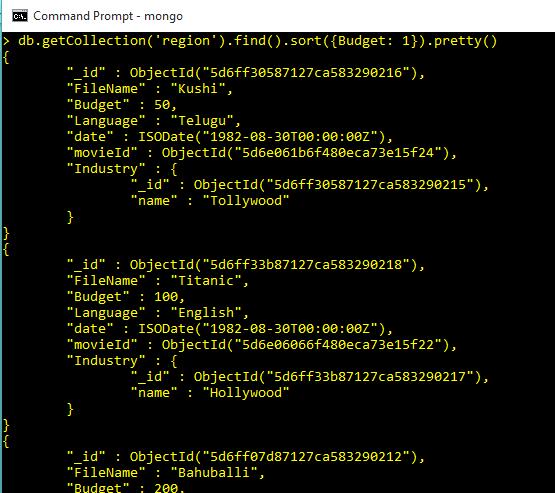

Sort by Budget Ascending

db.getCollection('region').find().sort({Budget: 1})

Output

Sort by Budget Descending

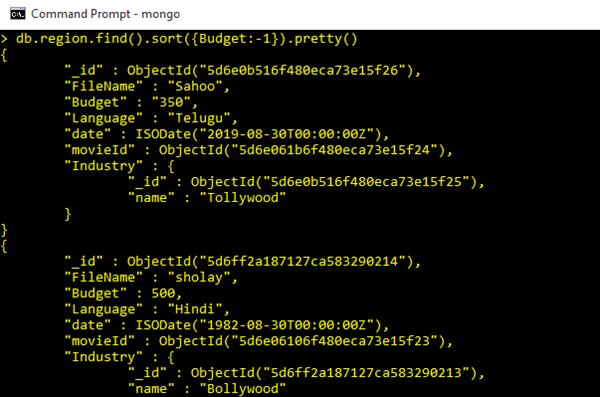

db.region.find().sort({Budget:-1}).pretty()

Output

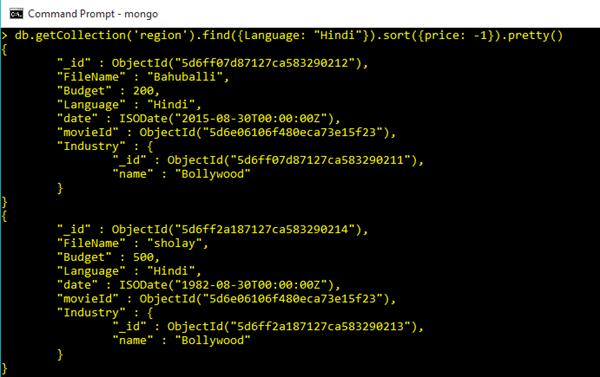

Sort and Condition

db.getCollection('region').find({Language: "Hindi"}).sort({price: -1})

Output

Sum in Query Commands

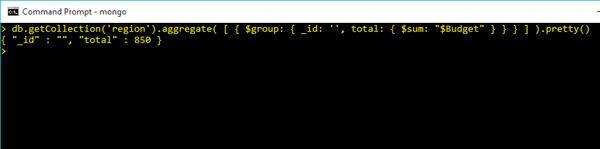

Sum Budget

db.getCollection('region').aggregate( [ { $group: { _id: '', total: { $sum: "$Budget" } } } ] ).pretty()

Output

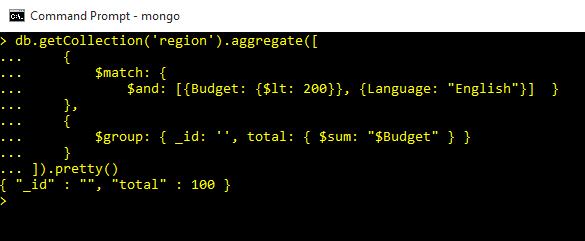

Sum Budget With Conditions
db.getCollection('region').aggregate([
    {
        $match: {
            $and: [{Budget: {$lt: 200}}, {Language: "English"}]  }
    },
    {
        $group: { _id: '', total: { $sum: "$Budget" } }
    }
]).pretty()

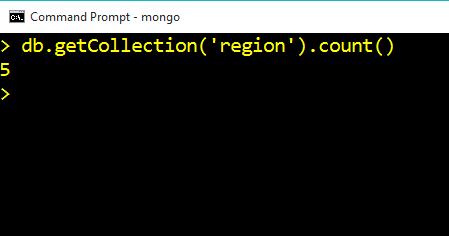

Count Product in Query Command

db.getCollection('region').count()

Output

Sum Budget With Conditions

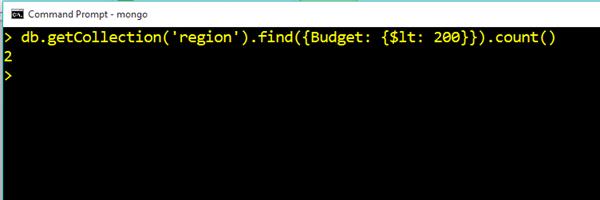

db.getCollection('region').find({Budget: {$lt: 200}}).count()

Output

Min and Max in Query Commands

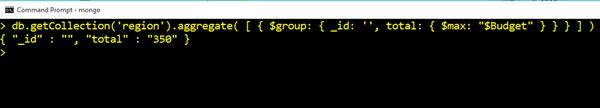

The Biggest Price

db.getCollection('region').aggregate( [ { $group: { _id: '', total: { $max: "$Budget" } } } ] )

Output

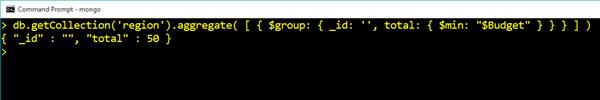

The Smallest Budget

db.getCollection('region').aggregate( [ { $group: { _id: '', total: { $min: "$Budget" } } } ] )

Output

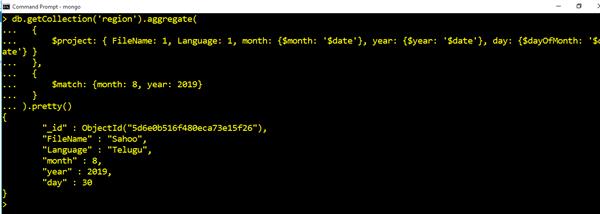

Use Date and Time with Conditions

db.getCollection('region').aggregate(
  {
      $project: { FileName: 1, Language: 1, month: {$month: '$date'}, year: {$year: '$date'}, day: {$dayOfMonth: '$date'} }
  },
  {
      $match: {month: 8, year: 2019}
  }
).pretty()

Output

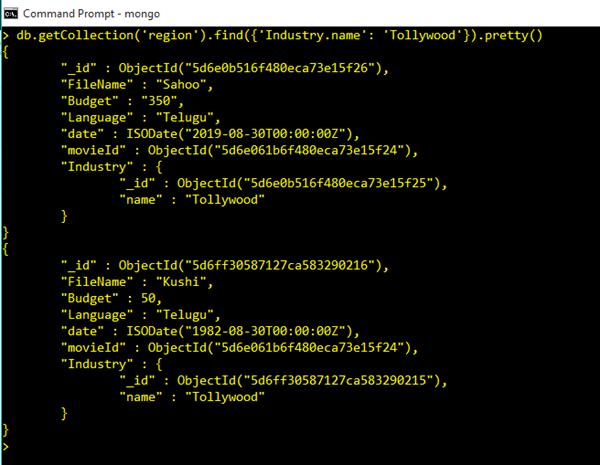

Filter Data with Embed Document in Query Commands

db.getCollection('region').find({'Industry.name': 'Tollywood'}).pretty()

Output

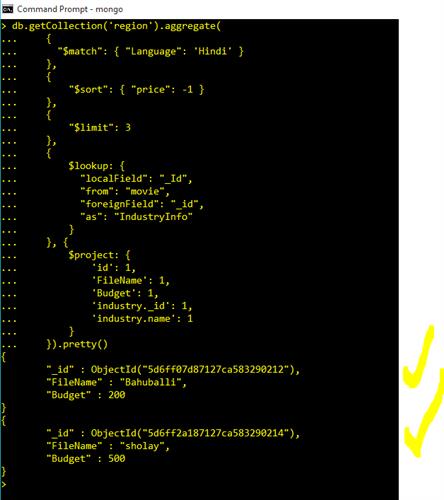

Join and Conditions in Query Commands

db.getCollection('region').aggregate(
    {
      "$match": { "Language": 'Hindi' }
    },
    {
        "$sort": { "price": -1 }
    },
    {
        "$limit": 3
    },
    {
        $lookup: {
          "localField": "_Id",
          "from": "movie",
          "foreignField": "_id",
          "as": "IndustryInfo"
        }
    }, {
        $project: {
            'id': 1,
            'FileName': 1,
            'Budget': 1,
            'industry._id': 1,
            'industry.name': 1
        }
    }).pretty()



Output

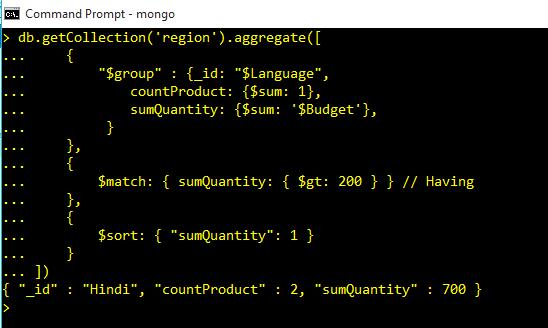

Group By and Having in Query Commands

db.getCollection('region').aggregate([
    {
        "$group" : {_id: "$Language",
            countProduct: {$sum: 1},
            sumQuantity: {$sum: '$Budget'},
         }
    },
    {
        $match: { sumQuantity: { $gt: 200 } } // Having
    },
    {
        $sort: { "sumQuantity": 1 }
    }
]).pretty()

Output :

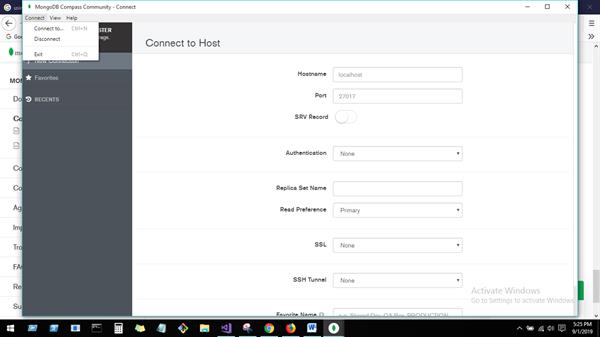

MongoDB Compass GUI

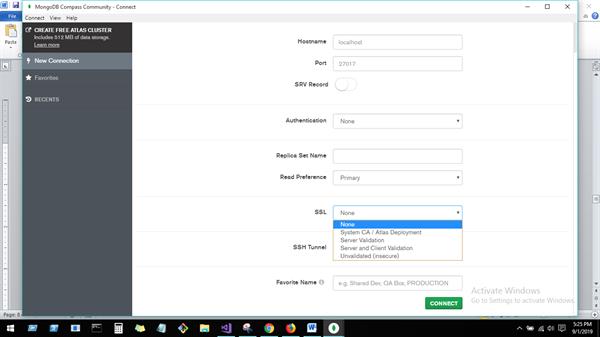

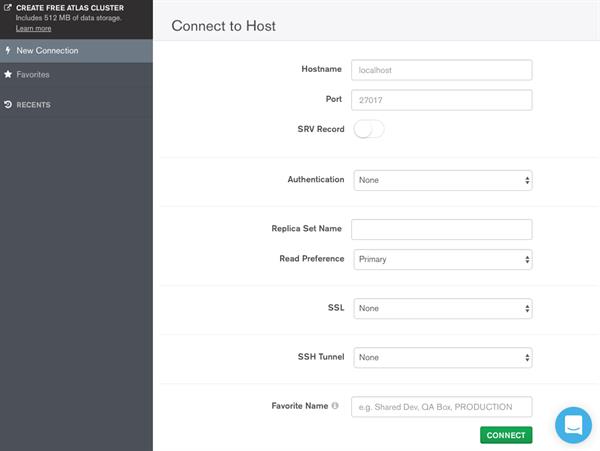

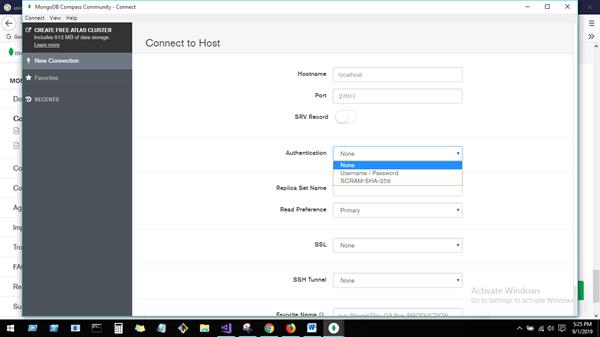

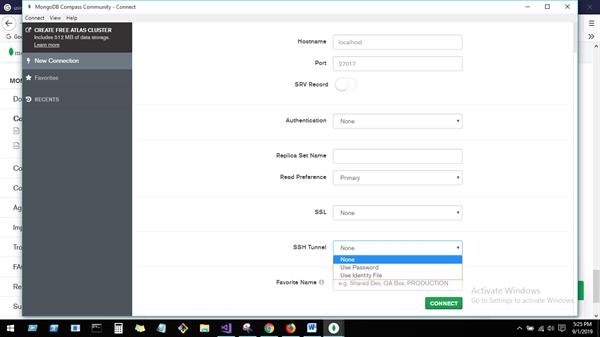

MongoDB Compass to connect to insert data and perform query operations. Once downloaded and open MongoDB Compass, Need to fill below details for connecting mongo DB host. Here right up corner, we have connection and disconnection options for connecting host.

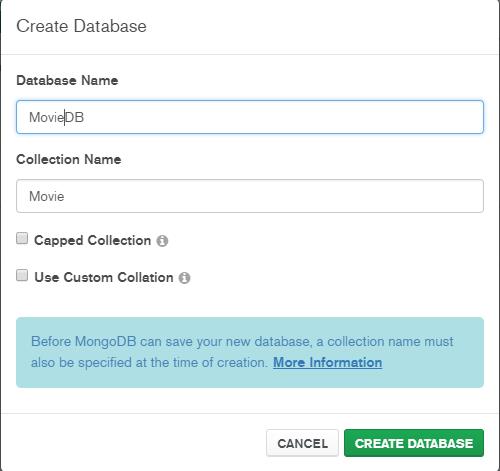

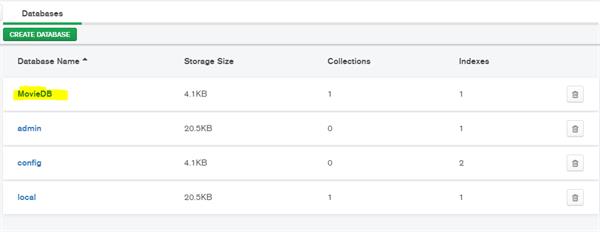

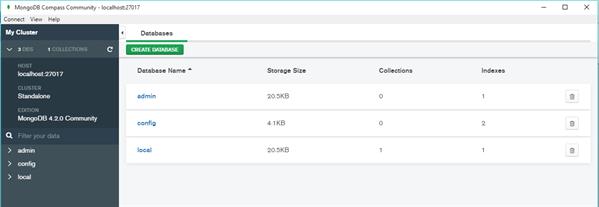

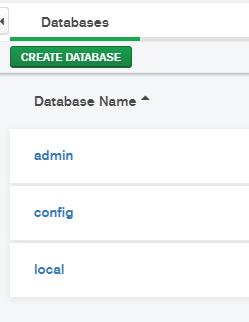

You can create Database from this UI.

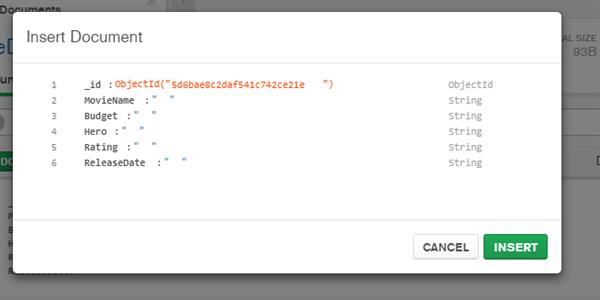

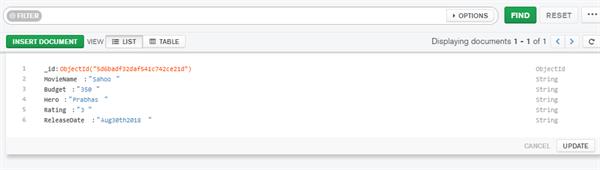

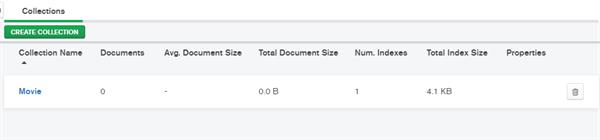

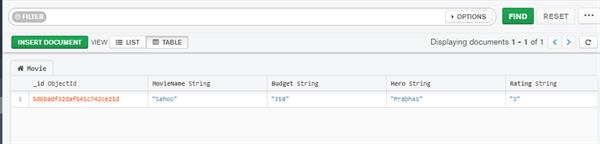

Here you can create collections (tables).

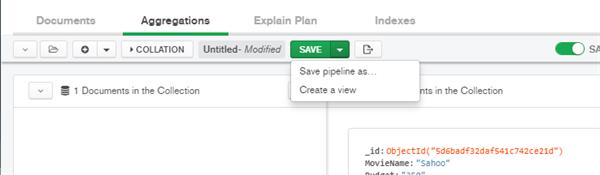

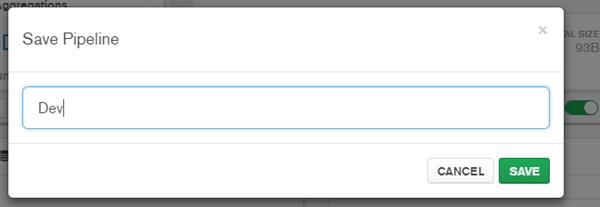

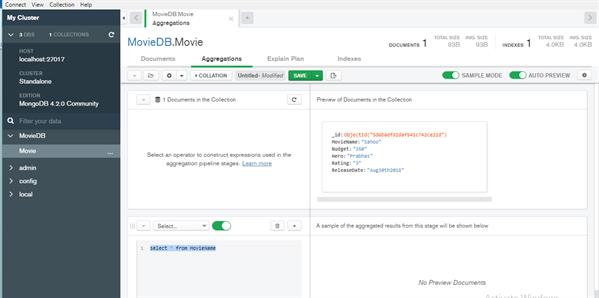

Here point out to environments pipeline

Hope this article will help you.
